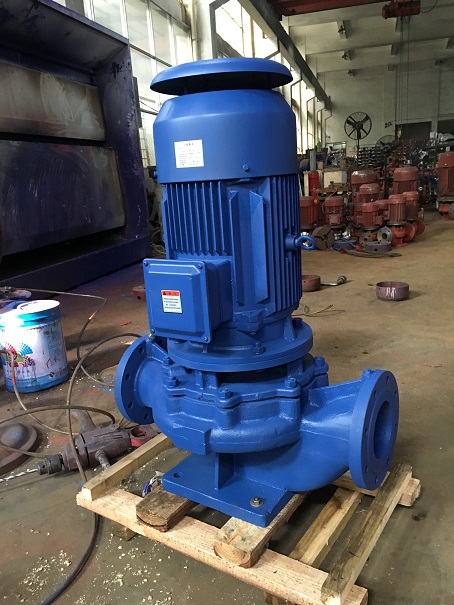

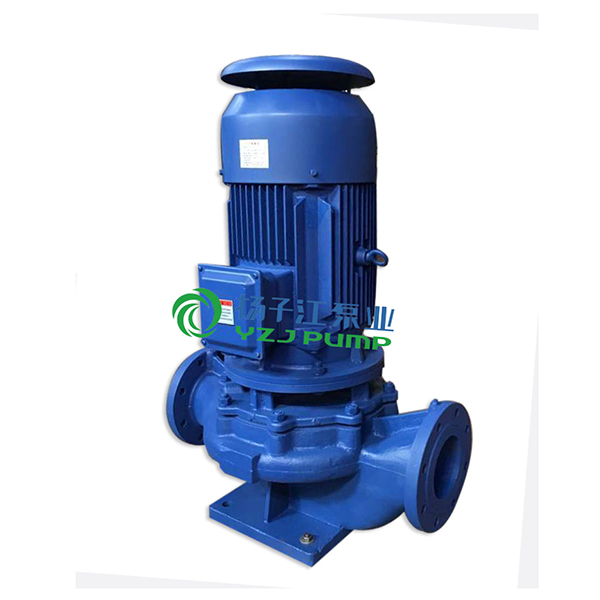

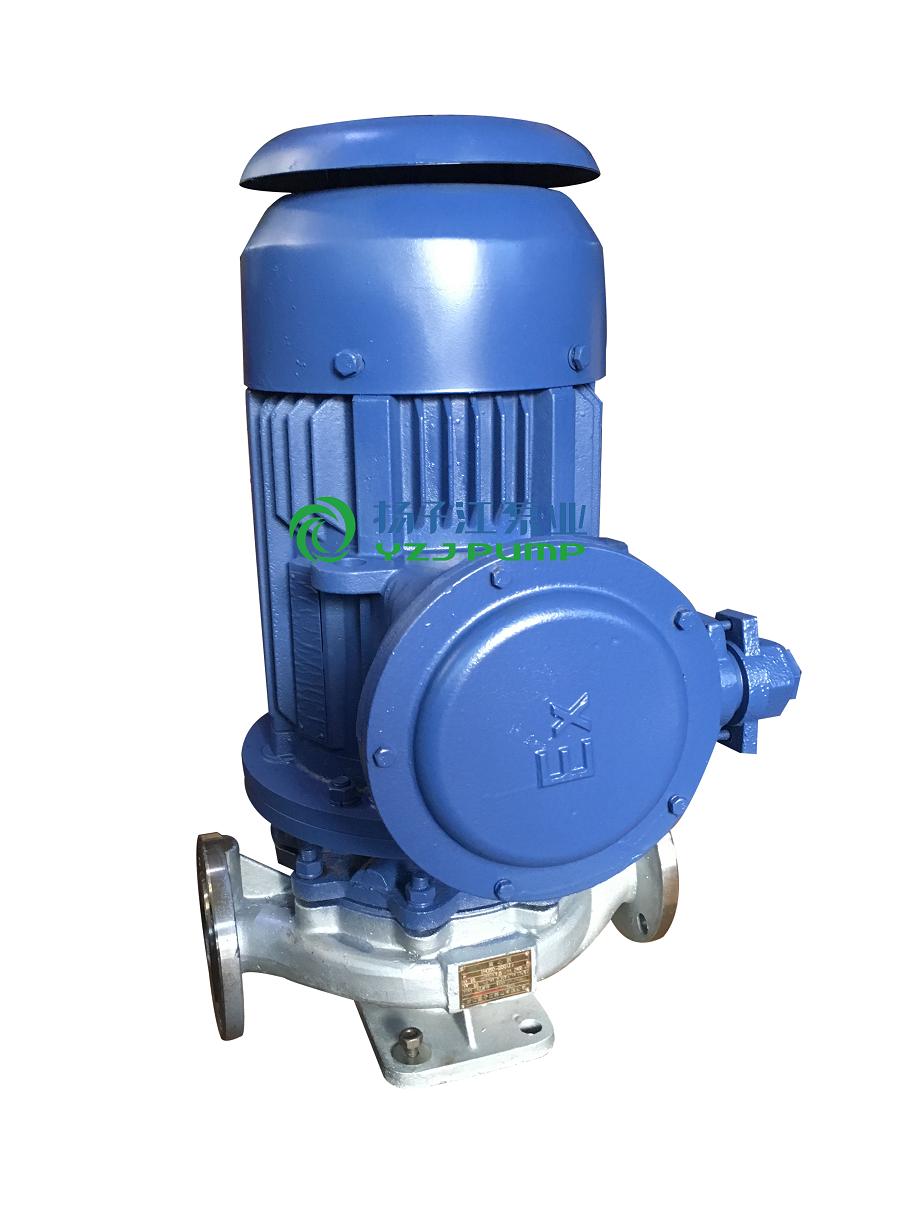

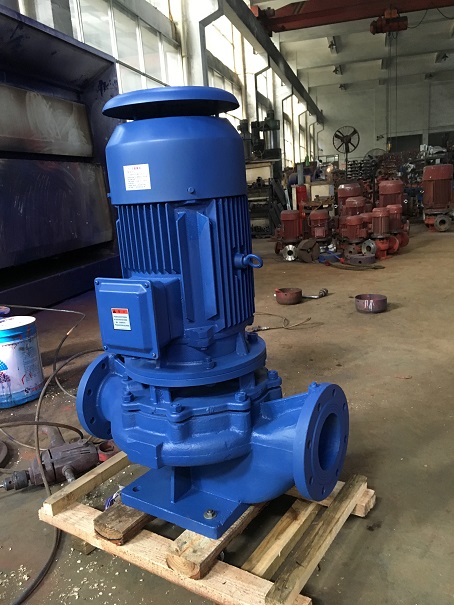

IRG戶外型單級熱水泵|單吸熱水循環泵|不銹鋼熱水泵
IRG型單級熱水泵|單吸熱水循環泵|不銹鋼熱水泵系單級單吸懸臂式離心泵，適用于各種建筑的采暖、熱水、空調系統及冶金、橡膠、印染、制糖等工業部門。用來輸送溫度不超過180℃，進口壓力不高于0.8MPa的介質。
目錄
產品用途
IRG型單級熱水泵|單吸熱水循環泵|不銹鋼熱水泵系單級單吸懸臂式離心泵，適用于各種建筑的采暖、熱水、空調系統及冶金、橡膠、印染、制糖等工業部門。用來輸送溫度不超過180℃，進口壓力不高于0.8MPa的介質。
參數范圍
流量Q 5.4~400m3/s
揚程H 4~80m
型號說明
IRG100－65J－200A
IRG－單級單吸熱水離心泵
100－吸入口直徑
65－排出口直徑
J－表示電機轉速改變
200－葉輪名義直徑
A－表示葉輪直徑改變（B、C分別表示第二、按次切割葉輪）
IRG型熱水泵結構型式
泵為臥式安裝，水平軸向吸入，向上徑向吐出。泵體為后開門式，可不拆卸泵體、吸入和排出管進行檢修。泵的軸封采用填料密封或機械密封。軸承為滾動軸承，采用稀油潤滑。泵蓋有兩種，一種是內接水封孔，另一種是外接水封空，訂貨時必須明確。
IRG型熱水泵旋轉方向從電動機端看，泵為逆時針方向旋轉。
IRG型熱水泵主要零件材質泵的過流部件材質，一般為灰口鑄鐵。
IRG型熱水泵成套范圍
成套供應泵、電機、公用底座、聯軸器，同時提供止回閥、閘閥、低閥、吐出錐管，其中是否配吐出錐管，用戶必須根據管路裝置注明。
工作條件
1.吸入壓力≤1.0MPa，或泵系統高工作壓力≤1.6MPa，即吸入口壓力+泵揚程≤1.6MPa、泵靜壓試驗壓力為≤2.5MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1.6MPa時應在訂貨時另行提出，以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2.環境溫度＜40℃，相對濕度＜40%。
3.所輸送介質中固體顆粒體積含量不超過單位體積的0.1，粒度＜0.2mm。
注：如果用介質為帶有細小顆粒，請在訂貨時說明，以便本廠采用耐磨式機械密封。
性能參數表
|
型號
|
流量
|
揚程
m |
效率
% |
轉速
r/min |
電機
功率 kw |
汽蝕
余量 m |
重量
kg |
|
|
m3/h
|
l/s
|
|||||||
|
IRG15-80
|
1.1
1.5 2.0 |
0.3
0.42 0.55 |
8.5
8 7 |
26
34 34 |
2900
|
0.18
|
2.3
|
17
|
|
IRG20-110
|
1.8
2.5 3.3 |
0.50
0.69 0.91 |
16
15 13.5 |
25
34 35 |
2900
|
0.37
|
2.3
|
25
|
|
IRG20-160
|
1.8
2.5 3.3 |
0.50
0.69 0.91 |
33
32 30 |
19
25 23 |
2900
|
0.75
|
2.3
|
29
|
|
IRG25-110
|
2.8
4.0 5.2 |
0.78
1.11 1.44 |
16
15 13.5 |
34
42 41 |
2900
|
0.55
|
2.3
|
26
|
|
IRG25-125
|
2.8
4.0 5.2 |
0.78
1.11 1.44 |
20.6
20 18 |
28
36 35 |
2900
|
0.75
|
2.3
|
28
|
|
IRG25-125A
|
2.5
3.6 4.6 |
0.69
1.0 1.28 |
17
16 14.4 |
35
35 35 |
2900
|
0.55
|
2.3
|
27
|
|
IRG25-160
|
2.8
4.0 5.2 |
0.78
1.11 1.44 |
33
32 30 |
24
32 33 |
2900
|
1.5
|
2.3
|
39
|
|
IRG25-160A
|
2.6
3.7 4.9 |
0.12
1.03 1.36 |
29
28 26 |
31
31 31 |
2900
|
1.1
|
2.3
|
34
|
|
IRG32-100I
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
13.2
12.5 11.3 |
48
54 53 |
2900
|
0.75
|
2.0
|
32
|
|
IRG32-125
|
3.5
5.0 6.5 |
0.97
1.39 1.8 |
22
20 18 |
40
44 42 |
2900
|
0.75
|
2.3
|
28
|
|
IRG32-125A
|
3.1
4.5 5.8 |
0.86
1.25 1.61 |
17.6
16 14.4 |
43
43 43 |
2900
|
0.55
|
2.3
|
28
|
|
IRG32-160
|
3.1
4.5 5.8 |
0.86
1.25 1.61 |
33
32 30 |
34
40 42 |
2900
|
1.5
|
2.3
|
28
|
|
IRG32-160I
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
33.2
32 30.2 |
34
40 42 |
2900
|
2.2
|
2.0
|
47
|
|
IRG32-200
|
3.1
4.5 5.8 |
0.86
1.25 1.61 |
51
50 48 |
28
35 37 |
2900
|
3
|
2.0
|
47
|
|
IRG32-200I
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
50.5
50 48 |
26
33 35 |
2900
|
4
|
2.0
|
43
|
|
IRG32-200IA
|
2.8
4.0 5.2 |
0.78
1.11 1.44 |
44.6
44 42.7 |
34
40 42 |
2900
|
2.2
|
2.0
|
74
|
|
IRG40-100
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
13.2
12.5 11.3 |
48
54 53 |
2900
|
0.55
|
2.3
|
32
|
|
IRG40-100A
|
3.9
5.6 7.4 |
1.08
1.56 2.06 |
10.6
10 9 |
52
52 52 |
2900
|
0.37
|
2.3
|
32
|
|
IRG40-125
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
21
20 18 |
41
46 43 |
2900
|
1.1
|
2.3
|
34
|
|
IRG40-125A
|
3.9
5.6 7.4 |
1.08
1.56 2.06 |
17.6
16 14.4 |
40
45 41 |
2900
|
0.75
|
2.3
|
33
|
|
IRG40-160
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
33
32 30 |
35
40 40 |
2900
|
2.2
|
2.3
|
47
|
|
IRG40-160A
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
29
28 26.3 |
34
39 39 |
2900
|
1.5
|
2.3
|
43
|
|
IRG40-160B
|
3.8
5.5 7.2 |
1.06
1.53 2.0 |
25.5
24 22.5 |
34
38 37 |
2900
|
1.1
|
2.3
|
38
|
|
IRG40-200
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
51
50 48 |
26
33 32 |
2900
|
4
|
2.3
|
74
|
|
IRG40-200A
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
45
44 42 |
26
31 30 |
2900
|
3
|
2.3
|
62
|
|
IRG40-200B
|
3.7
5.3 7.0 |
1.03
1.47 1.94 |
38
36 34.5 |
29
29 29 |
2900
|
2.2
|
2.3
|
52
|
|
IRG40-250
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
82
80 74 |
24
28 28 |
2900
|
7.5
|
2.3
|
105
|
|
IRG40-250A
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
72
70 65 |
24
28 27 |
2900
|
5.5
|
2.3
|
98
|
|
IRG40-250B
|
3.8
5.5 7.0 |
1.06
1.53 1.94 |
61.5
60 56 |
23
27 26 |
2900
|
4
|
2.3
|
77
|
|
IRG40-100I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
13.2
12.5 11.3 |
55 62 60
|
2900
|
1.1
|
2.3
|
34
|
|
IRG40-100IA
|
8
11 14.5 |
2.22
3.05 4.03 |
10.6
10 9 |
60
60 60 |
2900
|
0.75
|
2.3
|
32
|
|
IRG40-125I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.2
20 17.8 |
49
58 57 |
2900
|
1.5
|
2.3
|
38
|
|
IRG40-125IA
|
8
11 14.5 |
2.22
3.05 4.03 |
17
16 14 |
57
57 57 |
2900
|
1.1
|
2.3
|
33
|
|
IRG40-160I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
33
32 30 |
45
52 51 |
2900
|
3
|
2.3
|
56
|
|
IRG40-160IA
|
8.2
11.7 15.2 |
2.28
3.25 4.22 |
29
28 26 |
44
51 50 |
2900
|
2.2
|
2.3
|
47
|
|
IRG40-160IB
|
7.3
10.4 13.5 |
2.38
2.89 3.75 |
23
22 20.5 |
50
50 50 |
2900
|
1.5
|
2.3
|
43
|
|
IRG40-200I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
51.2
50 48 |
38
46 46 |
2900
|
5.5
|
2.3
|
85
|
|
IRG40-200IA
|
8.3
11.7 15.3 |
2.31
3.25 4.25 |
45
44 42 |
37
45 45 |
2900
|
4
|
2.3
|
75
|
|
IRG40-200IB
|
7.5
10.6 13.8 |
2.08
2.94 3.83 |
37
36 34 |
44
44 44 |
2900
|
3
|
2.3
|
63
|
|
IRG40-250I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
81.2
80 77.5 |
31
38 40 |
2900
|
11
|
2.3
|
145
|
|
IRG40-250IA
|
8.2
11.6 15.2 |
2.28
3.22 4.22 |
71
70 68 |
38
38 38 |
2900
|
7.5
|
2.3
|
95
|
|
IRG40-250IB
|
7.6
10.8 14 |
2.11
3.0 3.89 |
61.4
60 58 |
37
37 37 |
2900
|
7.5
|
2.3
|
94
|
|
IRG40-250IC
|
7.1
10.0 13.1 |
1.97
2.78 3.64 |
53.2
52 50.4 |
36
36 36 |
2900
|
5.5
|
2.3
|
88
|
|
IRG50-100
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
13.6
12.5 11.3 |
55
62 60 |
2900
,
|
1.1
|
2.3
|
36
|
|
IRG50-100A
|
8
11 14.5 |
2.22
3.05 4.03 |
11
10 9 |
60
60 60 |
2900
|
0.75
|
2.3
|
35
|
|
IRG50-125
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.5
20 17.8 |
49
58 57 |
2900
|
1.5
|
2.3
|
43
|
|
IRG50-125A
|
8
11 14.5 |
2.22
3.05 4.03 |
17
16 14 |
57
57 57 |
2900
|
1.1
|
2.3
|
38
|
|
IRG50-160
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
33
32 30 |
45
52 51 |
2900
|
3
|
2.3
|
59
|
|
IRG50-160A
|
8.2
11.7 15.2 |
2.28
3.25 4.22 |
29
28 26 |
44
51 50 |
2900
|
2.2
|
2.3
|
51
|
|
IRG50-160B
|
7.3
10.4 13.5 |
2.38
2.89 3.75 |
23
22 20.5 |
50
50 50 |
2900
|
1.5
|
2.3
|
47
|
|
IRG50-200
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
52
50 48 |
38
46 46 |
2900
|
5.5
|
2.3
|
101
|
|
IRG50-200A
|
8.3
11.7 15.3 |
2.31
3.25 4.25 |
45.8
44 42 |
37
45 45 |
2900
|
4
|
2.3
|
80
|
|
IRG50-200B
|
7.5
10.6 13.8 |
2.08
2.94 3.83 |
37
36 34 |
44
44 44 |
2900
|
3
|
2.3
|
68
|
|
IRG50-250
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
82
80 77.5 |
29
38 40 |
2900
|
11
|
2.3
|
160
|
|
IRG50-250A
|
8.2
11.6 15.2 |
2.28
3.22 4.22 |
38
38 38 |
2900
|
7.5
|
2.3
|
115
|
|
IRG50-250B
|
7.6
10.8 14 |
2.11
3.0 3.89 |
61.4
60 58 |
37
37 37 |
2900
|
7.5
|
2.3
|
114
|
|
IRG50-250C
|
7.1
10.0 13.1 |
1.97
2.78 3.64 |
53.2
52 50.4 |
36
36 36 |
2900
|
5.5
|
2.3
|
108
|
|
IRG50-100I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
13.7
12.5 10.5 |
67
69 69 |
2900
|
1.5
|
2.5
|
41
|
|
IRG50-100IA
|
15.6
22.3 29 |
4.3
6.19 8.1 |
11
10 8.4 |
65
67 68 |
2900
|
1.1
|
2.5
|
36
|
|
IRG50-125I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
60
68 67 |
2900
|
3
|
2.5
|
56
|
|
IRG50-125IA
|
15.6
22.3 29 |
4.33
6.19 8.1 |
17
16 13.6 |
58
66 65 |
2900
|
2.2
|
2.5
|
48
|
|
IRG50-160I
|
17.5
25 32.5 |
4.68
6.94 9.03 |
34.4
32 27.5 |
54
63 60 |
2900
|
4
|
2.5
|
72
|
|
IRG50-160IA
|
16.4
23.4 30.4 |
4.56
6.5 8.44 |
30
28 24 |
54
62 59 |
2900
|
4
|
2.5
|
71
|
|
IRG50-160IB
|
15.0
21.6 28 |
4.17
6.0 7.78 |
26
24 20.6 |
58
58 58 |
2900
|
3
|
2.5
|
59
|
|
IRG50-200I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
52.7
50 45.5 |
49
58 59 |
2900
|
7.5
|
2.5
|
108
|
|
IRG50-200IA
|
16.4
23.5 30.5 |
4.56
6.53 8.47 |
46.4
44 40 |
48
57 58 |
2900
|
7.5
|
2.5
|
107
|
|
IRG50-200IB
|
15.2
21.8 28.3 |
4.22
6.06 7.86 |
40
38 34.5 |
55
55 55 |
2900
|
5.5
|
2.5
|
100
|
|
IRG50-250I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
82
80 76.5 |
39
50 52 |
2900
|
15
|
2.5
|
175
|
|
IRG50-250IA
|
16.4
23.4 30.5 |
4.56
6.5 8.47 |
71.5
70 67 |
39
50 52 |
2900
|
11
|
2.5
|
165
|
|
IRG50-250IB
|
15
21.6 28 |
4.17
6.0 7.78 |
61
60 57.4 |
38
49 54 |
2900
|
11
|
2.5
|
165
|
|
IRG50-315I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
128
125 122 |
30
40 44 |
2900
|
30
|
2.5
|
310
|
|
IRG50-315IA
|
16.6
23.7 31 |
4.61
6.58 8.6 |
115
113 110 |
30
40 44 |
2900
|
22
|
2.5
|
245
|
|
IRG50-315IB
|
15.7
22.5 29.2 |
4.36
6.25 8.0 |
103
101 98 |
39
39 39 |
2900
|
18.5
|
2.5
|
215
|
|
IRG50-315IC
|
14.4
20.6 26.8 |
4.0
5.72 7.44 |
86
85 83 |
38
38 38 |
2900
|
15
|
2.5
|
195
|
|
IRG65-100
|
17.5
25 32.5 |
4.86
6.94 9.03 |
13.7
12.5 10.5 |
67
69 69 |
2900
|
1.5
|
2.5
|
46
|
|
IRG65-100A
|
15.6
22.3 29 |
4.3
6.19 8.1 |
11
10 8.4 |
65
67 68 |
2900
|
1.1
|
2.5
|
41
|
|
IRG65-125
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
60
68 67 |
2900
|
3
|
2.5
|
58
|
|
IRG65-125A
|
15.6
22.3 29 |
4.33
6.19 8.1 |
17
16 14.4 |
58
66 65 |
2900
|
2.2
|
2.5
|
49
|
|
IRG65-160
|
17.5
25 32.5 |
4.86
6.94 9.03 |
34.4
32 27.5 |
54
63 60 |
2900
|
4
|
2.5
|
75
|
|
IRG65-160A
|
16.4
23.4 30.4 |
4.56
6.5 8.44 |
30
28 24 |
54
62 59 |
2900
|
4
|
2.5
|
75
|
|
IRG65-160B
|
15.0
21.6 28 |
4.17
6.0 7.78 |
26
24 20.6 |
58
58 58 |
2900
|
3
|
2.5
|
63
|
|
IRG65-200
|
17.5
25 32.5 |
4.86
6.94 9.03 |
52.7
50 45.5 |
49
58 59 |
2900
|
7.5
|
2.5
|
107
|
|
IRG65-200A
|
16.4
23.5 30.5 |
4.56
6.53 8.47 |
46.4
44 40 |
48
57 58 |
2900
|
7.5
|
2.5
|
107
|
|
IRG65-200B
|
15.2
21.8 28.3 |
4.22
6.06 7.86 |
40
38 34.5 |
55
55 55 |
2900
|
5.5
|
2.5
|
100
|
|
IRG65-250
|
17.5
25 32.5 |
4.86
6.94 9.03 |
82
80 76.5 |
39
50 52 |
2900
|
15
|
2.5
|
180
|
|
IRG65-250A
|
16.4
23.4 30.5 |
4.56
6.5 8.47 |
71.5
70 67 |
39
50 52 |
2900
|
11
|
2.5
|
170
|
|
IRG65-250B
|
15
21.6 28 |
4.17
6.0 7.78 |
61
60 57.4 |
38
49 54 |
2900
|
11
|
2.5
|
170
|
|
IRG65-315
|
17.5
25 32.5 |
4.86
6.94 9.03 |
127
125 122 |
32
40 44 |
2900
|
30
|
2.5
|
320
|
|
IRG65-315A
|
16.6
23.7 31 |
4.61
6.58 8.6 |
115
113 110 |
32
40 44 |
2900
|
22
|
2.5
|
255
|
|
IRG65-315B
|
15.7
22.5 29.2 |
4.36
6.25 8.0 |
103, , ,
101 98 |
39
39 39 |
2900
|
18.5
|
2.5
|
225
|
|
IRG65-315C
|
14.4
20.6 26.8 |
4.0
5.72 7.44 |
86
85 83 |
38
38 38 |
2900
|
15
|
2.5
|
205
|
|
IRG65-100I
|
35
50 65 |
9.72
13.9 18.1 |
13.8
12.5 10 |
67
73 70 |
2900
|
3
|
3.0
|
63
|
|
IRG65-100IA
|
31.3
44.7 58 |
8.7
12.4 16.1 |
11
10 8 |
66
72 69 |
2900
|
2.2
|
3.0
|
53
|
|
IRG65-125I
|
35
50 65 |
9.72
13.9 18.1 |
22
20 17 |
67
72.5 70 |
2900
|
5.5
|
3.0
|
99
|
|
IRG65-125IA
|
31.3
45 58 |
8.7
12.5 16.1 |
17.5
16 13.6 |
66
71 69 |
2900
|
4
|
3.0
|
78
|
|
IRG65-160I
|
35
50 65 |
9.72
13.9 18.1 |
35
32 28 |
63
71 70 |
2900
|
7.5
|
3.0
|
103
|
|
IRG65-160IA
|
32.7
46.7 61 |
9.1
13.0 16.9 |
30.6
28 24 |
62
70 69 |
2900
|
7.5
|
3.0
|
103
|
|
IRG65-160IB
|
30.3
43.3 56.3 |
8.4
12.0 15.6 |
26
24 21 |
69
69 69 |
2900
|
5.5
|
3.0
|
97
|
|
IRG65-200I
|
35
50 65 |
9.72
13.9 18.1 |
53.5
50 46 |
55
67 68 |
2900
|
15
|
3.0
|
176
|
|
IRG65-200IA
|
32.8
47 61 |
9.1
13.1 16.9 |
47
44 40 |
54
66 67 |
2900
|
11
|
3.0
|
166
|
|
IRG65-200IB
|
30.5
43.5 56.6 |
8.5
12.1 15.7 |
40.6
38 33.4 |
65
65 65 |
2900
|
7.5
|
3.0
|
114
|
|
IRG65-250I
|
35
50 65 |
9.72
13.9 18.1 |
83
80 72 |
52
59 60 |
2900
|
22
|
3.0
|
235
|
|
IRG65-250IA
|
32.5
46.7 61 |
9.0
13.0 16.9 |
73
70 63 |
52
59 60 |
2900
|
18.5
|
3.0
|
205
|
|
IRG65-250IB
|
30
43.3 56 |
8.3
12.0 15.6 |
62
60 54 |
58
58 58 |
2900
|
15
|
3.0
|
180
|
|
IRG65-315I
|
35
50 65 |
9.72
13.9 18.1 |
128
125 121 |
44
54 57 |
2900
|
37
|
3.0
|
350
|
|
IRG65-315IA
|
32.5
46.5 60.5 |
9.0
12.9 16.8 |
112.6
110 106.4 |
43
54 57 |
2900
|
30
|
3.0
|
335
|
|
IRG65-315IB
|
31
44.5 58 |
8.6
12.4 16.1 |
102.5
100 98 |
53
53 53 |
2900
|
30
|
3.0
|
335
|
|
IRG65-315IC
|
29
41 53.6 |
8.1
11.4 14.9 |
87
85 83 |
51
51 51 |
2900
|
22
|
3.0
|
270
|
|
IRG80-100
|
35
50 65 |
9.72
13.9 18.1 |
13.8
12.5 10 |
67
73 70 |
2900
|
3
|
3.0
|
63
|
|
IRG80-100A
|
31.3
44.7 58 |
8.7
12.5 16.1 |
11
10 8 |
66
72 69 |
2900
|
2.2
|
3.0
|
54
|
|
IRG80-125
|
35
50 65 |
9.72
13.9 18.1 |
22
20 17 |
67
72.5 70 |
2900
|
5.5
|
3.0
|
99
|
|
IRG80-125A
|
31.3
45 58 |
8.7
12.5 16.1 |
17.5
16 13.6 |
66
71 69 |
2900
|
4
|
3.0
|
79
|
|
IRG80-160
|
35
50 65 |
9.72
13.9 18.1 |
35
32 28 |
63
71 70 |
2900
|
7.5
|
3.0
|
105
|
|
IRG80-160A
|
32.7
46.7 61 |
9.1
13.0 16.9 |
30.6
28 24 |
62
70 69 |
2900
|
7.5
|
3.0
|
105
|
|
IRG80-160B
|
30.3
43.3 56.3 |
8.4
12.0 15.6 |
26
24 21 |
69
69 69 |
2900
|
5.5
|
3.0
|
98
|
|
IRG80-200
|
35
50 65 |
9.72
13.9 18.1 |
53.5
50 46 |
55
67 68 |
2900
|
15
|
3.0
|
175
|
|
IRG80-200A
|
32.8
47 61 |
9.1
13.1 16.9 |
47
44 40 |
54
66 67 |
2900
|
11
|
3.0
|
165
|
|
IRG80-200B
|
30.5
43.5 56.5 |
8.5
12.1 15.7 |
40.6
38 33.4 |
65
65 65 |
2900
|
7.5
|
3.0
|
115
|
|
IRG80-250
|
35
50 65 |
9.72
13.9 18.1 |
83
80 72 |
52
59 60 |
2900
|
22
|
3.0
|
240
|
|
IRG80-250A
|
32.5
46.7 61 |
9.0
13.0 16.9 |
73
70 63 |
52
59 60 |
2900
|
18.5
|
3.0
|
210
|
|
IRG80-250B
|
30
43.3 56 |
8.3
12.0 15.6 |
62
60 54 |
58
58 58 |
2900
|
15
|
3.0
|
185
|
|
IRG80-315
|
35
50 65 |
9.72
13.9 18.1 |
128
125 122 |
43
54 57 |
2900
|
37
|
3.0
|
355
|
|
IRG80-315A
|
32.5
46.5 60.5 |
9.0
12.9 16.8 |
112.6
110 107.4 |
43
54 57 |
2900
|
30
|
3.0
|
340
|
|
IRG80-315B
|
31
44.5 58 |
8.6
12.4 16.1 |
102.5
100 98 |
53
53 53 |
2900
|
30
|
3.0
|
340
|
|
IRG80-315C
|
29
41 53.6 |
8.1
11.4 14.9 |
98
85 83 |
51
51 51 |
2900
|
22
|
3.0
|
275
|
|
IRG80-350
|
35
50 65 |
9.72
13.9 18.1 |
146
150 142 |
55
66 67 |
290
|
55
|
3.0
|
570
|
|
IRG80-350A
|
31
44.5 58 |
8.6
12.4 16.1 |
138.4
142 134.8 |
65
65 65 |
2900
|
45
|
3.0
|
470
|
|
IRG80-350B
|
29
41 53.6 |
8.1
11.4 14.9 |
131.4
135 127.8 |
63
63 63 |
2900
|
37
|
3.0
|
440
|
|
IRG80-100I
|
70
100 130 |
19.4
27.8 36.1 |
13.6
12.5 11 |
66
76 75 |
2900
|
5.5
|
4.5
|
108
|
|
IRG80-100IA
|
62.6
89 116 |
17.4
24.7 32.2 |
11
10 8.8 |
64
74 74 |
2900
|
4
|
4.5
|
87
|
|
IRG80-125I
|
70
100 130 |
19.4
27.8 36.1 |
23.5
20 14 |
70
76 65 |
2900
|
11
|
4.5
|
163
|
|
IRG80-125IA
|
62.6
89 116 |
17.4
24.7 32.2 |
19
16 11 |
68
74 65 |
2900
|
7.5
|
4.5
|
113
|
|
IRG80-160I
|
70
100 130 |
19.4
27.8 36.1 |
36.5
32 24 |
70
76 65 |
2900
|
15
|
4.5
|
184
|
|
IRG80-160IA
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
32
28 21 |
68
74 67 |
2900
|
11
|
4.5
|
174
|
|
IRG80-160IB
|
60.6
86.6 112.5 |
16.8
24.1 31.3 |
72
24 18 |
72
72 72 |
2900
|
11
|
4.5
|
174
|
|
IRG80-200I
|
70
100 130 |
19.4
27.8 36.1 |
54
50 42 |
65
74 73 |
2900
|
22
|
4.0
|
251
|
|
IRG80-200IA
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
47.5
44 37 |
64
73 72 |
2900
|
18.5
|
4.0
|
220
|
|
IRG80-200IB
|
61
87 113 |
16.9
24.2 31.4 |
41
38 32 |
71
71 71 |
2900
|
15
|
4.0
|
198
|
|
IRG80-250I
|
70
100 130 |
19.4
27.8 36.1 |
87
80 68 |
62
69 68 |
2900
|
37
|
4.0
|
330
|
|
IRG80-250IA
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
76
70 59.5 |
61
68 67 |
2900
|
30
|
4.0
|
315
|
|
IRG80-250IB
|
61
87 113 |
16.9
24.2 31.4 |
65
60 51 |
66
66 66 |
2900
|
30
|
4.0
|
315
|
|
IRG80-315I
|
70
100 130 |
19.4
27.8 36.1 |
132
125 114 |
55
66 67 |
2900
|
75
|
4.0
|
675
|
|
IRG80-315IA
|
66.5
95 123.6 |
18.5
26.4 34.3 |
119
113 103 |
55
66 67 |
2900
|
55
|
4.0
|
535
|
|
IRG80-315IB
|
63
90 117 |
17.5
25 32.5 |
106.6
101 92 |
65
65 65 |
2900
|
45
|
4.0
|
420
|
|
IRG80-315IC
|
58
82 107 |
16.1
22.8 29.7 |
90
85 76 |
63
63 63 |
2900
|
37
|
4.0
|
366
|
|
IIRG100-100
|
70
100 130 |
19.4
27.8 36.1 |
13.6
12.5 11 |
66
76 75 |
2900
|
5.5
|
4.5
|
113
|
|
IRG100-100A
|
62.6
89 116 |
17.4
47 32.2 |
11
10
8.8
|
64
74 74 |
2900
|
4
|
4.5
|
91
|
|
IRG100-125
|
70
100 130 |
19.4
27.8 36.1 |
23.5
20 14 |
70
76 65 |
2900
|
11
|
4.5
|
169
|
|
IRG100-125A
|
62.6
89 116 |
17.4
24.7 32.2 |
19
16 11 |
68
74 63 |
2900
|
7.5
|
4.5
|
118
|
|
IRG100-160
|
70
100 130 |
19.4
27.8 36.1 |
36.5
32 24 |
70
76 65 |
2900
|
15
|
4.5
|
191
|
|
IRG100-160A
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
32
28 21 |
68
74 67 |
2900
|
11
|
4.5
|
181
|
|
IRG100-160B
|
60.6
86.6 112.5 |
16.8
24.1 31.3 |
27
24 18 |
72
72 72 |
2900
|
11
|
4.5
|
181
|
|
IRG100-200
|
70
100 130 |
19.4
27.8 36.1 |
54
50 42 |
65
74 73 |
2900
|
22
|
4.0
|
245
|
|
IRG100-200A
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
47.5
44 37 |
64
73 72 |
2900
|
18.5
|
4.0
|
215
|
|
IRG100-200B
|
61
87 113 |
16.9
24.2 31.4 |
41
38 32 |
71
71 71 |
2900
|
15
|
4.0
|
193
|
|
IRG100-250
|
70
100 130 |
19.4
27.8 36.1 |
87
80 68 |
62
69 68 |
2900
|
37
|
4.0
|
345
|
|
IRG100-250A
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
76
70 59.5 |
61
68 67 |
2900
|
30
|
4.0
|
330
|
|
IRG100-250B
|
61
87 113 |
16.9
24.2 31.4 |
65
60 51 |
66
66 66 |
2900
|
30
|
4.0
|
330
|
|
IRG100-315
|
70
100 130 |
19.4
27.8 36.1 |
132
125 114 |
55
66 67 |
2900
|
75
|
4.0
|
689
|
|
IRG100-315A
|
66.5
95 123.6 |
18.5
26.4 34.3 |
119
113 103 |
65
66 67 |
2900
|
55
|
4.0
|
549
|
|
IRG100-315B
|
63
90 117 |
17.5
25 32.5 |
106.6
101 92 |
65
65 65 |
2900
|
45
|
4.0
|
439
|
|
IRG100-315C
|
58
82 107 |
16.1
22.8 29.7 |
90
85 76 |
63
63 63 |
2900
|
37
|
4.0
|
385
|
|
IRG100-350
|
60
100 120 |
16.7
27.8 33.3 |
153.6
150 142 |
72
57 74 |
2900
|
90
|
4.0
|
950
|
|
IRG100-350A
|
61
87 113 |
16.9
24.2 31.4 |
145.6
142 134 |
75
75 75 |
2900
|
75
|
4.0
|
830
|
|
IRG100-350B
|
58
82 107 |
16.1
22.8 29.7 |
138.6
135 127 |
75
75 75 |
2900
|
55
|
4.0
|
600
|
|
IRG100-100I
|
96
160 192 |
26.7
44.4 53.3 |
14
12.5 10 |
64
73 70 |
2900
|
11
|
4.5
|
115
|
|
IRG100-125I
|
96
160 192 |
26.7
44.4 53.3 |
24
20 14 |
62
74 69 |
2900
|
15
|
4.5
|
168
|
|
IRG100-125IA
|
84
140 168 |
23.3
39 46.7 |
20
17 12 |
64
72 69 |
2900
|
11
|
4.5
|
168
|
|
IRG100-160I
|
96
160 192 |
26.7
44.4 53.3 |
36
32 27 |
69
79 75 |
2900
|
22
|
,,
5.6
|
210
|
|
IRG100-160IA
|
84
140 168 |
23.3
39 46.7 |
32
28 23.5 |
66
76 72 |
2900
|
18.5
|
5.0
|
210
|
|
IRG100-200I
|
96
160 192 |
26.7
44.4 53.3 |
53
50 45 |
69
79 78 |
2900
|
37
|
5.2
|
402
|
|
IRG100-200IA
|
84
140 168 |
23.3
39 46.7 |
48
45 40 |
64
74 73 |
2900
|
30
|
4.5
|
395
|
|
IRG100-200IB
|
60
100 120 |
16.7
27.8 33.3 |
43
40 36 |
72
72 72 |
2900
|
22,
|
4.5
|
360
|
|
IRG100-250I
|
96
160 192 |
26.7
44.4 53.3 |
83
80 72 |
65
77 74 |
2900
|
55
|
4.8
|
560
|
|
IRG100-250IA
|
84
140 168 |
23.3
39 46.7 |
75
72 65 |
60
72 69 |
2900
|
45
|
4.5
|
420
|
|
IRG100-250IB
|
60
100 120 |
16.7
27.8 33.3 |
68
65 58 |
70
70 70 |
2900
|
37
|
4.5
|
400
|
|
IRG125-100
|
96
160 192 |
26.7
44.4 53.3 |
13
12.5 12 |
82
82 82 |
2900
|
11
|
4.0
|
180
|
|
IRG125-100A
|
86
143 172 |
23.9
39.7 47.8 |
10.4
10 9.6 |
77
77 77 |
290
|
7.5
|
4.0
|
125
|
|
IRG125-125
|
96
160 192 |
26.7
44.4 53.3 |
22.6
20 17 |
80
80 80 |
2900
|
15
|
4.0
|
220
|
|
IRG125-125A
|
86
143 172 |
23.9
39.7 47.8 |
18
16 13.6 |
77
77 77 |
2900
|
11
|
4.0
|
210
|
|
IRG125-160
|
96
160 192 |
26.7
44.4 53.3 |
36
32 28 |
78
78 78 |
2900
|
22
|
4.0
|
265
|
|
IRG125-160A
|
90
150 180 |
25
41 50 |
31.5
28 24.5 |
76
76 76 |
2900
|
18.5
|
4.0
|
230
|
|
IRG125-160B
|
83
138 166 |
21.7
38.3 46.1 |
27
24 21 |
73
73 73 |
2900
|
15
|
4.0
|
215
|
|
IRG125-200
|
96
160 192 |
26.7
44.4 53.3 |
55
50 46 |
77
77 77 |
2900
|
37
|
5.5
|
395
|
|
IRG125-200B
|
83
138 166 |
21.7
38.3 46.1 |
41.3
37.4 34.5 |
75
75 75 |
2900
|
22
|
5.5
|
320
|
|
IRG125-250
|
96
160 192 |
24.7
44.7
53.3
|
87
80 73 |
75
75 75 |
2900
|
55
|
5.0
|
580
|
|
IRG125-250A
|
90
150 180 |
25
41.7 50 |
76
70 84 |
74
74 74 |
2900
|
45
|
5.5
|
490
|
|
IIRG125-250B
|
83
138 166 |
21.7
38.3 46.1 |
65
60 55 |
73
73 73 |
2900
|
37
|
5.5
|
430
|
|
IRG125-215
|
96
160 192 |
26.7
44.7 53.3 |
133
125 119 |
70
70 70 |
2900
|
90
|
5.0
|
790
|
|
IRG125-315A
|
90
150 180 |
25
41.7 50 |
117
110 104.6 |
70
70 70 |
2900
|
75
|
5.0
|
710
|
|
IRG125-315B
|
86
143 172 |
23.9
39.7 47.8 |
106.4
100 95.2 |
69
69 69 |
2900
|
75
|
5.0
|
705
|
|
IRG125-315C
|
80.5
134 161 |
22.4
37.2 44.7 |
96
88 86 |
67
67 67 |
2900
|
55
|
5.0
|
585
|
|
IRG150-125
|
96
160 192 |
26.7
44.4 53.3 |
22.6
24 17 |
66
76 76 |
2900
|
11
|
4.0
|
210
|
|
IRG150-125A
|
90
150 180 |
25
41.7 50 |
18
16 13.6 |
77
77 77 |
2900
|
7.5
|
4.0
|
130
|
|
IRG150-160
|
96
160 192 |
26.7
44.4 53.3 |
36
32 27 |
75
75 75 |
2900
|
22
|
4.0
|
270
|
|
IRG150-160A
|
90
150 180 |
25
41.7 50 |
32
28 23.5 |
76
76 76 |
2900
|
18.5
|
4.0
|
230
|
|
IRG150-160B
|
84
141 168 |
23.3
39 46.7 |
27
24 21 |
73
73 73 |
2900
|
15
|
4.0
|
220
|
|
IRG150-200
|
140
200 260 |
38.9
55.6 72.2 |
13.8
12.5 10.6 |
68
78 78 |
1450
|
15
|
3.0 |
265
|
|
IRG150-200A
|
125
176 232.5 |
34.7
49.7 64.6 |
11
10 8.5 |
66
76 76 |
1450
|
11
|
3.0
|
244
|
|
ISG150-200B
|
84
440 168 |
23.3
39 46.7 |
41
38 34 |
75
75 75 |
2900
|
22
|
4.0
|
275
|
|
IRG150-250
|
140
200 260 |
38.9
55.6 72.2 |
21.8
20 17 |
73
79 77 |
1450
|
18.5
|
3.0
|
300
|
|
IRG150-250A
|
129
184.4 240 |
35.8
51.2 66.7 |
18.5
17 14.4 |
72
78 76 |
1450
|
15
|
3.0
|
262
|
|
IRG150-250B
|
117
167 217.5 |
32.5
46.4 60.4 |
15.2
14 12 |
76
76 76 |
1450
|
11
|
3.0
|
241
|
|
IRG150-315
|
140
200 260 |
38.9
55.6 72.2 |
33.8
32 28 |
70
78 73 |
1450
|
30
|
2.5
|
410
|
|
IRG150-315A
|
131
187 243 |
36.4
51.9 67.5 |
29.5
28 24.5 |
69
77 77 |
1450
|
22
|
3.5
|
335
|
|
IRG150-315B
|
121
173 225 |
33.5
48.1 62.5 |
25
24 21 |
76
76 76 |
1450
|
18.5
|
3.5
|
315
|
|
IRG150-350
|
96
160 192 |
26.7
44.4 53.3 |
153.6
150 142.8 |
80
80 80 |
2900
|
110
|
5.5
|
970
|
|
IRG150-350A
|
90
150 180 |
25
41.7 50 |
145.6
142 134.8 |
70
70 70 |
2900
|
90
|
5.2
|
790
|
|
IRG150-350B
|
84
140 168 |
23.3
39 46.7 |
138.6
35 127.8 |
65
76 74 |
2900
|
75
|
5.5
|
705
|
|
IRG150-400
|
140
200 260 |
38.9
55.6 72.2 |
53
50 44 |
68
75 71 |
1450
|
45
|
3.5
|
490
|
相關產品
相關文章
